Network Technology

What does repeater suggest?

A repeater is a community device that retransmits a obtained sign with extra strength and to an extended geographical or topological network boundary than what might be succesful with the authentic sign.

A repeater is applied in computer networks to increase the insurance region of the network, propagate a weak or broken sign and or carrier faraway nodes. Repeaters expand the received/enter signal to a better frequency domain in order that it's far reusable, scalable and to be had.

Repeaters have been introduced in wired statistics communique networks because of the predicament of a signal in propagating over an extended distance and now are a common set up in wireless networks for increasing cell size.

Why are repeaters wanted?

Whilst an electrical sign is transmitted thru a channel, it gets attenuated relying upon the nature of the channel or the era. This poses a trouble upon the duration of the lan or coverage place of mobile networks. This problem is alleviated with the aid of installing repeaters at positive intervals.

Repeaters amplifies the attenuated signal and then retransmits it. Digital repeaters may even reconstruct alerts distorted by means of transmission loss. So, repeaters are popularly integrated to connect among two lans as a consequence forming a large single lan.

Styles of repeaters

According to the sorts of indicators that they regenerate, repeaters can be categorised into categories

Analog repeaters − they can simplest extend the analog signal.

Digital repeaters − they could reconstruct a distorted sign.

According to the forms of networks that they connect, repeaters can be classified into two types −

Wired repeaters − they are utilized in stressed lans.

Wi-fi repeaters − they're used in wi-fi lans and cell networks.

In line with the domain of lans they connect, repeaters can be divided into two classes −

Nearby repeaters − they connect lan segments separated by means of small distance.

Faraway repeaters − they connect lans which might be a ways from each other.

Advantages of Repeaters

Repeaters are simple to install and might without problems amplify the period or the insurance place of networks.

They may be price powerful.

Repeaters don’t require any processing overhead. The simplest time they need to be investigated is in case of decay of overall performance.

They are able to join signals the use of unique sorts of cables.

Risks of repeaters

Repeaters can not connect varied networks.

They can not differentiate among real sign and noise.

They cannot reduce network traffic or congestion.

Maximum networks have limitations upon the range of repeaters that may be deployed

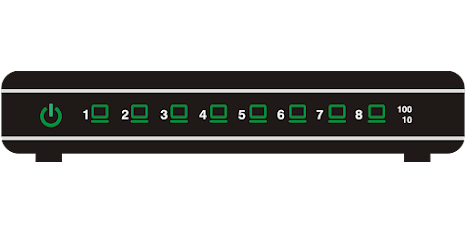

Hubs

A hub is a bodily layer networking device which is used to connect more than one gadgets in a community. They're usually used to attach computers in a lan.

A hub has many ports in it. A computer which intends to be connected to the network is plugged in to this type of ports. Whilst a facts frame arrives at a port, it's miles broadcast to each different port, with out thinking about whether it's miles destined for a specific vacation spot or no longer.

Hubs were used for connecting different community devices in a neighborhood vicinity network (lan) long lower back, but network switches had replaced hubs. In recent times it is very hard to spot a community hub functioning in a live local location community (lan). Hubs feature as the crucial connection factor for nearby vicinity network (lan). In ethernet networks, hubs have been designed to paintings using twisted pair cables and use rj45 jack to connect one-of-a-kind community gadgets. Community gadgets (servers, workstations, printers, and scanners and so forth.) are connected to the hub by person community cables. Hubs were to be had in specific shapes and one-of-a-kind numbers of ports.

Whilst a hub receives a packet of statistics (an ethernet body) at one among its ports from a network tool, it transmits (repeats) the packet to all of its ports to all of the other community devices. If community devices at the identical community try to send packets at the equal time, a collision is said to arise.

Switch

What is a network transfer?

A community transfer is a tool that operates on the facts link layer of the osi model—layer 2. It takes in packets being dispatched by devices which might be linked to its bodily ports and sends them out once more, but handiest thru the ports that lead to the devices the packets are meant to reach. They can also perform on the network layer-layer three where routing happens.

Switches are a not unusual factor of networks primarily based on ethernet, fiber, asynchronous switch mode (ATM), and InfiniBand, among others. In fashionable, though, most switches nowadays use ethernet.

How does a network switch paintings?

Once a tool is hooked up to a transfer, the switch notes its media get admission to manipulate (mac) cope with, a code that’s baked into the device’s network-interface card (Nic) that attaches to an ethernet cable that attaches to the switch. The switch uses the mac deal with to perceive which connected tool outgoing packets are being dispatched from and wherein to supply incoming packets.

So the mac deal with identifies the bodily tool in place of the community layer (layer 3) IP cope with, which may be assigned dynamically to a device and change over time.

When a tool sends a packet to some other tool, it enters the switch and the transfer reads its header to determine what to do with it. It suits the vacation spot deal with or addresses and sends the packet out thru the appropriate ports that results in the vacation spot devices.

Types of switches

Switches vary in length, depending on how many devices you want to attach in a specific area, in addition to the form of community speed/bandwidth required for those gadgets.

In a small office or home workplace, a 4- or 8-port switch commonly suffices, however for larger deployments you usually see switches up to 128 ports.

The shape component of a smaller transfer is an equipment that you may fit on a computer, but switches are also rack-mountable for placement in a wiring closet or information center or server farm.

Sizes of rack-mountable switches variety from 1u to 4u, however larger ones vicinity also available.

Switches additionally vary inside the network velocity they provide, starting from rapid ethernet (10/a hundred mbps), gigabit ethernet (10/one hundred/one thousand mbps), 10 gigabit (10/a hundred/1000/ten thousand mbps) or even forty/100 gbps speeds.

Which velocity to choose relies upon on the throughput needed for the duties being supported.

Bridge

What is a community bridge?

A network bridge is a device which could create a single network from distinct and more than one network segments. In different words, it could connect the two or extra networks. The characteristic used right here is called community bridging.

There is a distinction between bridging and routing. In routing, there are a couple of networks which run independently but they can communicate with each other. But, within the bridging, the idea is totally distinctive. Here, the 2 networks are bridged together with a view to works a single community. Here the two networks can’t function and feature as a distinct community. When speak me approximately the osi model, the bridging is finished within the facts link layer, layer 2.

The bridge can be executed either using the cables or you could also do it with out cables thru wireless. If the computers are related through wireless, it's far called a wireless bridge.

Running of a network

A bridge is generally utilized in a nearby vicinity network. This is due to the fact they could finally flood and clog right into a big community. Additionally, it's far far smooth to switch the information to all the nodes just in case they don’t understand about the mac cope with of the destination node.

A bridge is used for the relationship of 1 or more device in which the network is exceeded. The usage of the bridge, one or more community can behave as a single network.

The running of the bridge is easy; the frame is directly dispatched to all of the exclusive nodes which might be linked the usage of it.

If there are any troubles passed off in the bridge, and the body obtained is supposed for the segments that are on the identical community then the node is then discarded. On this manner, the conflict that happens is solved easily.

At the identical hand, if the bridge received any frame where the mac cope with is accurate and the body is supposed to be sent to the connected community then in such instances, the frame is transferred without any troubles.

Types of community bridges

There are various varieties of bridges wherein the bridging is completed. In each of the working is sort of the identical. However, there's a small distinction seen.

Obvious bridging: here, while the bridging is being carried out and the frame is about to be transferred. If the table suggests empty and there's no mac address discovered, the bridge will ship the body to each and each node present.

Easy bridge: it's far the normal bridging wherein the two network segments are related to each other. The transfer is carried out a frame by body to determine whether or not the selected frame must be transferred to the opposite network or not.

Multi-port bridging: right here, the technique is nearly similar to a easy bridge, it stores the body, decides and then forwards it. The most effective distinction here is that there is a further bridge on the way to decide in which the site visitors is forwarded.

Router

A router is a tool that connects two or greater packet-switched networks or sub networks. It serves primary features: coping with site visitors between these networks with the aid of forwarding data packets to their meant ip addresses, and allowing more than one devices to use the identical net connection.

There are numerous sorts of routers, but most routers skip data among lans (neighborhood place networks) and wans (extensive region networks). A lan is a set of connected gadgets constrained to a specific geographic place. A lan normally calls for a single router.

A wan, by means of evaluation, is a big network unfold out over a great geographic location. Huge agencies and companies that function in multiple places throughout the country, for instance, will need separate lans for every location, which then connect with the other lans to shape a wan. Due to the fact a wan is distributed over a big area, it frequently necessitates a couple of routers and switches.

How does a router paintings?

Consider a router as an air traffic controller and facts packets as aircraft headed to extraordinary airports (or networks). Simply as every aircraft has a unique vacation spot and follows a completely unique path, every packet wishes to be guided to its destination as effectively as possible. Inside the equal manner that an air visitors controller ensures that planes attain their locations without getting lost or suffering a first-rate disruption along the way, a router helps direct records packets to their vacation spot IP address.

As a way to direct packets correctly, a router makes use of an internal routing table — a list of paths to diverse community destinations. The router reads a packet's header to decide in which it's far going, then consults the routing table to parent out the maximum green route to that vacation spot. It then forwards the packet to the following network in the course.

What is gateway and how it works

It's miles a nation of a network that may get to special networks. Typically, inside the intranet, a node or router can move approximately as a router or the gateway node that interfaces the networks are known as gateways. In massive businesses, the desktops that deal with the visitors between organization networks are named gateway nodes. As an instance, the desktops utilized by internet carrier carriers to attach fluctuated users for the time being time to the internet are gateway nodes.

It very well can be related to the router considering that a router precisely thinks about the routing course of data packets that shows up on the gateway, then a transfer chooses within the reasonable inside and out the way of the gateway for the assigned packet. The gateway is a required trait of publications even though exclusive gadgets can act well as a gateway.

Functions of gateways

gateway is positioned on the boundary of a community and manages all records that inflows or outflows from that network.

it forms a passage between specific networks working with one-of-a-kind transmission protocols.

a gateway operates as a protocol converter, offering compatibility among the extraordinary protocols used within the two specific networks.

the characteristic that differentiates a gateway from different community gadgets is that it may perform at any layer of the osi version.

it also shops information approximately the routing paths of the speaking networks.

when used in organization situation, a gateway node may be supplemented as proxy server or firewall.

a gateway is typically implemented as a node with multiple nics (community interface cards) connected to distinctive networks. But, it may also be configured using software.

It makes use of packet switching method to transmit records across the networks

coaxial cable

Coaxial cable is a sort of copper cable specially constructed with a metal guard and other additives engineered to block signal interference. It's far by and large utilized by cable tv businesses to attach their satellite antenna centers to consumer houses and businesses. It's also occasionally used by telephone businesses to connect central offices to cellphone poles close to customers. A few homes and workplaces use coaxial cable, too, however its extensive use as an ethernet connectivity medium in enterprises and records centers has been supplanted by means of the deployment of twisted pair cabling.

Coaxial cable obtained its call as it consists of one physical channel that carries the signal surrounded -- after a layer of insulation -- via another concentric bodily channel, each running along the same axis. The outer channel serves as a floor. Lots of these cables or pairs of coaxial tubes may be placed in a single outer sheathing and, with repeaters, can bring facts for a great distance.

Coaxial cable turned into invented in 1880 through English engineer and mathematician Oliver Heaviside, who patented the discovery and design that equal year. At set up its first pass-continental coaxial transmission gadget in 1940. Depending at the carrier era used and different elements, twisted pair copper cord and optical fiber are options to coaxial cable.

How coaxial cables paintings

Coaxial cables have concentric layers of electrical conductors and insulating fabric. This construction guarantees alerts are enclosed within the cable and forestalls electrical noise from interfering with the sign.

The center conductor layer is a skinny carrying out wire, both strong or braided copper. A dielectric layer, made of an insulating cloth with very well-described electrical characteristics, surrounds the cord.

What's fiber optic cable?

A fiber optic cable is a network cable that includes strands of glass fibers inner an insulated casing. They're designed for long-distance, excessive-overall performance statistics networking, and telecommunications. As compared to stressed cables, fiber optic cables offer higher bandwidth and transmit statistics over longer distances. Fiber optic cables help an awful lot of the arena's internet, cable tv, and cellphone structures.

How fiber optic cables paintings

A fiber optic cable includes one or extra strands of glass, every handiest barely thicker than a human hair. The center of every strand is referred to as the core, which provides the pathway for light to journey. The core is surrounded via a layer of glass called cladding that displays light inward to avoid lack of sign and allow the mild to skip via bends within the cable.

The two primary forms of optical fiber cables are unmarried mode and multi-mode. Unmarried-mode fiber uses extremely thin glass strands and a laser to generate mild, whilst multi-mode optical fiber cables use leds.

Single-mode optical fiber networks regularly use wave division multiplexing strategies to boom the quantity of records site visitors that the strand can deliver. Wdm allows light at multiple unique wavelengths to be blended (multiplexed) and later separated (de-multiplexed), correctly transmitting multiple conversation streams thru a single mild pulse.

Advantages of fiber optic cables

Fiber cables provide numerous blessings over lengthy-distance copper cabling.

Fiber optics assist a better capacity. The amount of network bandwidth a fiber cable can convey effortlessly exceeds that of a copper cable with comparable thickness.

Fiber cables rated at 10 gbps, 40 gbps, and a hundred gbps are wellknown.

Because mild can tour for a lot longer distances over a fiber cable with out losing its electricity, the need for signal boosters is lessened.

A fiber optic cable is much less prone to interference. A copper community cable requires shielding to protect it from electromagnetic interference.

Whilst this protecting helps, it is not sufficient to save you interference while many cables are strung together in proximity to one another.

The bodily properties of fiber optic cables keep away from most of these problems.

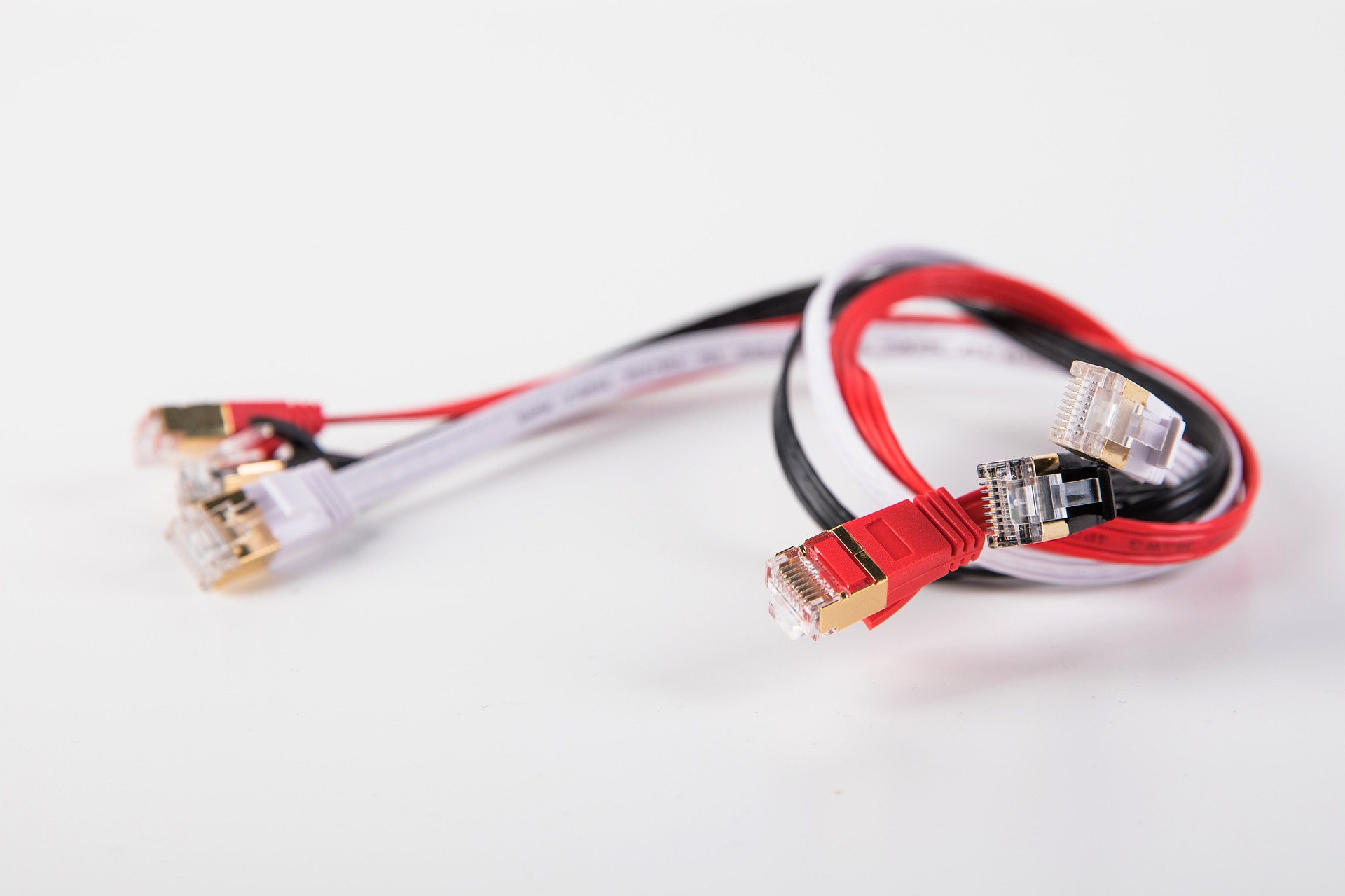

What does twisted-pair cable mean?

A twisted pair cable is a kind of cable made by putting two separate insulated wires collectively in a twisted sample and walking them parallel to each other. This type of cable is widely used in exclusive sorts of statistics and voice infrastructures.

Twisted pair cable

Professionals factor out that twisted pair cabling is frequently used to assist avoid certain sorts of sign interference. Different varieties of twisted pair cable, unshielded twisted pair (utp) and shielded twisted pair (stp) are utilized in one of a kind forms of installations. Utp is common in ethernet installations, whilst stp is utilized in numerous kinds of networks to save you crosstalk and electromagnetic interference. Stp cable can also assist to offer grounding.

In standard, twisted-pair cabling can be preferred over a common alternative, coaxial cable, for exceptional motives. Coaxial cable entails a unmarried, thicker wire. Many of folks that use this type of cable claim that twisted pair has a extra accommodating bend radius, is easier to terminate, and offers greater versatility in choosing network topologies. Different kinds of twisted-pair cable are rated by way of industry requirements together with iso/eic and eia/tia.
